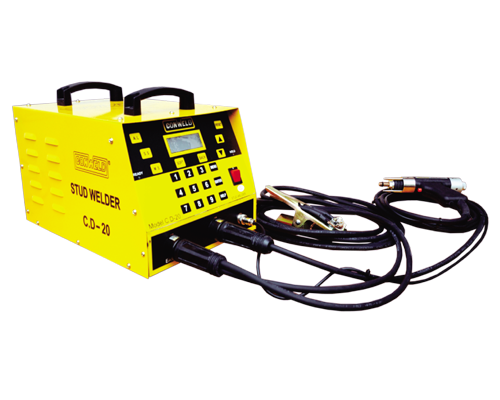

| Description: | C.D - 20 (Enhanced Flash Microcontroller Technology) |
| Welding: | M3 - M8 with Mild Steel and Stainless Steel, Aluminium and brass |
| Range: | 3 MM - 8 MM* |
| Welding Method: | Tip Ignition |
| Power Source: | Capacitor Bank |
| Charging Capacity: | 75,000 µF |
| Charging Voltage: | 45 - 200 V-DC Settable |
| Welding Time: | 0.001 - 0.003 sec. |
| Welding Output: | up to 20 - 25 studs/min., depending on stud diameter |
| Mains Supply: | 230 V AC Power 500 VA, fuse 3, 10 AMP |
| Connected Cable: | 3 Mtr + Earthing Cable 3 Mtr |
| Dimensions: | 15” X 11” X 9” inches (L X W X H) |
| Weight: | 19 kg. |

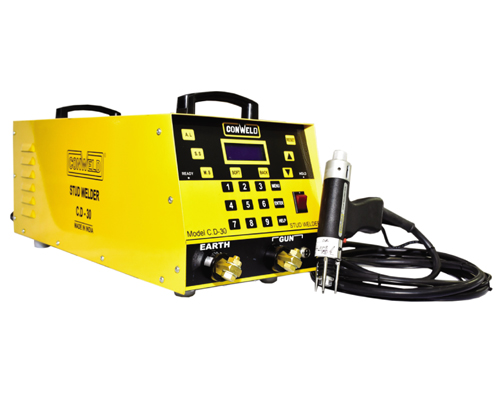

| Description: | C.D - 30 (Enhanced Flash Microcontroller Technology) |
| Welding: | 3mm - 10mm with Mild Steel and Stainless Steel, Aluminium and brass |
| Range: | 3 MM - 10 MM* |
| Welding Method: | Tip Ignition |
| Power Source: | Capacitor Bank |
| Charging Capacity: | 1,00,000 µF |
| Charging Voltage: | 170max Settable |
| Welding Time: | 0.001 - 0.005 sec. |
| Welding Output: | up to 20 - 25 studs/min., depending on stud diameter |
| Mains Supply: | 230 VAC, Fuse 1, 25AMP |
| Power Rating: | Peak Power 1.4 KVA (Standby Power 150VA) |
| Connected Cable: | 3Mtr + Earthing Cable 3Mtr |
| Dimensions: | 25” X 11” X 10” inches (L X W X H) |
| Weight: | 30kg |

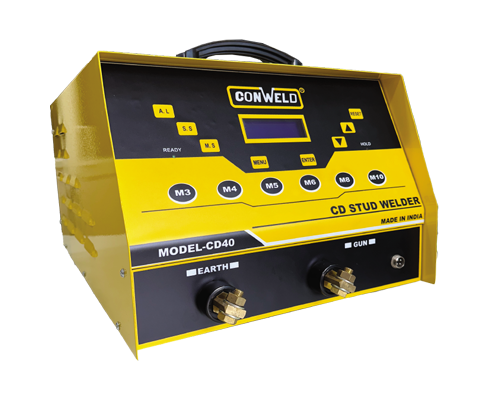

| Description: | C.D - 40 (Enhanced Flash Microcontroller Technology) |
| Welding: | M3 - M10 with Mild Steel and Stainless Steel, Aluminium and brass |
| Range: | 3 MM - 10 MM* |
| Welding Method: | Tip Ignition |
| Power Source: | Capacitor Bank |
| Charging Capacity: | 1,50,000 µF |
| Charging Voltage: | 45 - 200 V-DC Settable |
| Welding Time: | 0.001 - 0.003 sec. |
| Welding Output: | up to 20 - 25 studs/min., depending on stud diameter |
| Mains Supply: | 230 V AC Power 500 VA, fuse 3, 25 AMP |
| Connected Cable: | 3 Mtr + Earthing Cable 3 Mtr |
| Dimensions: | 22” X 15” X 12” inches (L X W X H) |
| Weight: | 34 kg. |

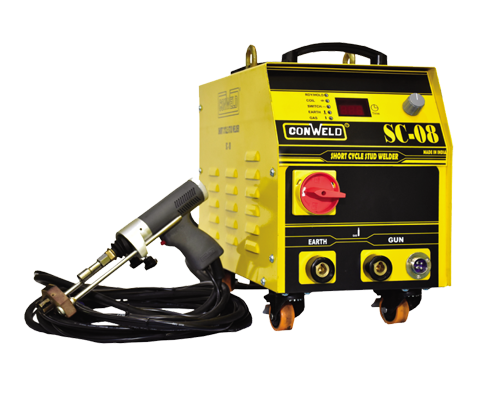

| Welding Range: | M3 to M8 Diameter 3 to 8mm |
| Short Cycle: | (Integrated with Microcontroller) Monochrome graphical display |
| Max Current: | 550 Amp |
| Weld Time: | 5-200 mSec |
| Weld Rate: | 15 to 25 Studs per minute |
| Weld Material: | Mild Steel, Stainless Steel |
| Weld Source: | Transformer |
| Mains Power Supply: | 415 VAC 50/60 Hz |
| Mains Line MCB: | 32 AMP External |
| Cooling: | Internal Cooling Fan |
| Weight: | 55 Kg |

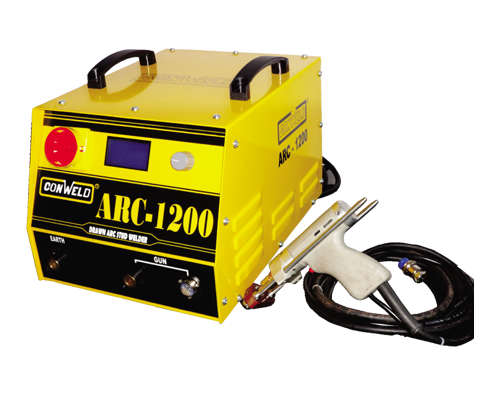

| Description: | ARC - 1200 DRAWN ARC CONTROLLER (Integrated with Microcontroller) Monochrome graphical display |
| Welding: | M3 - M12 stud |
| Range: | 3 MM to 12 MM* |
| Welding Method: | Drawn ARC-welding |
| Power Source: | Three Phase Uncontrolled Rectifier |
| Gun Voltage: | DC - 80V |
| Welding Time: | 3 ms to 500 ms |
| Mains Supply: | AC - 415V - 32 Amp, AC Power - 28 KVA |
| Current: | Up to 800Amp |
| Connected Cable: | 3 Mtr + Earthing cable 5Mtr |
| Dimensions: | 18” X 13” X 12” |
| Weight: | 55 Kg (Without Gun) |

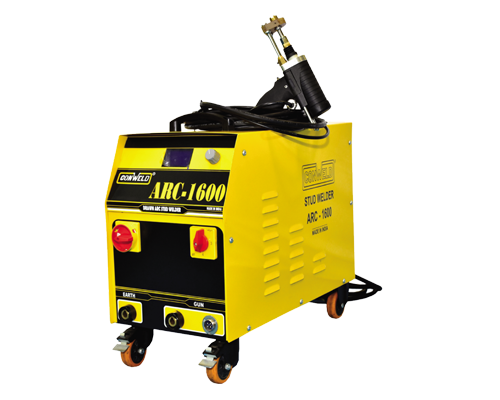

| Description: | ARC - 1600 DRAWN ARC STUD WELDER (Integrated with Micro controller) Monochrome graphical Display |
| Welding: | M5 - M16(RD Type) |
| Range: | 5 MM to 16 MM* |
| Welding Method: | Drawn ARC-welding |
| Power Source: | Three Phase @ 64 Amp |
| Gun Voltage: | DC - 80V |
| Welding Time: | 750 ms Max Settable |
| Mains Supply: | AC - 415V - 32 Amp, AC Power - 28 KVA |
| Current: | 1400AMP DC |
| Connected Cable: | 3 Mtr |
| Cooling: | Internal Fan |
| Weight: | 92.5kg |

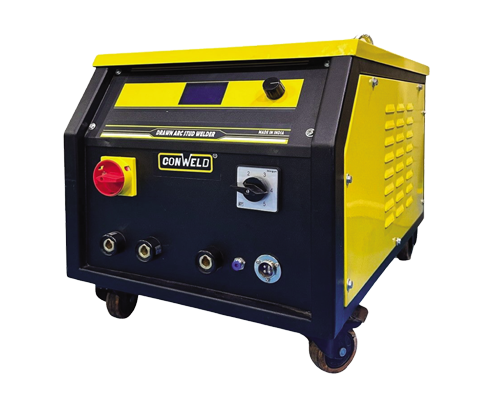

| Description: | ARC - 1800 DRAWN ARC STUD WELDER (Integrated with Microcontroller) Monochrome graphical display |
| Welding: | M6 - M20 stud (RD Type) |
| Range: | 6 MM to 20 MM* |
| Welding Method: | Drawn ARC-welding |
| Power Source: | Three Phase @ 64 Amp |
| Gun Voltage: | DC - 80V |
| Welding Time: | 1500 ms Max Settable |
| Mains Supply: | AC - 415V - 64 Amp |
| Current: | 1750 AMP DC |
| Connected Cable: | 3 Mtr |
| Cooling: | Internal Fan |
| Weight: | 134 kg |

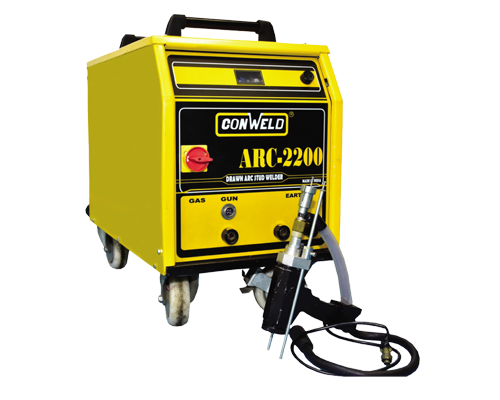

| Description: | ARC - 2200 DRAWN ARC STUD WELDER (Integrated with Microcontroller) Monochrome graphical display |
| Welding: | M6 - M22 stud |
| Range: | 6 MM to 22 MM* |
| Welding Method: | Drawn ARC-welding |
| Power Source: | Three-phase controlled rectifier |
| Gun Voltage: | DC - 80V |
| Welding Time: | 1000 ms |
| Mains Supply: | AC - 415V - 32 Amp, AC Power - 28 KVA |
| Current: | 100-2200 AMP DC |
| Connected Cable: | 3 Mtr |
| Cooling: | Internal Fan |
| Weight: | 270kg |
