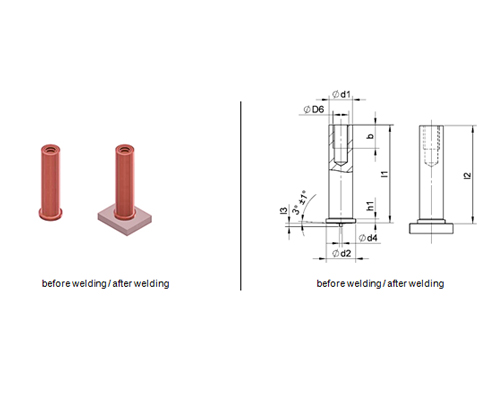

Dimensions
| Description | Length |
|---|---|
| M3 | 6-30 mm |
| M4 | 6-40 mm |
| M5 | 6-45 mm |
| M6 | 8-60 mm |
| M8 | 10-60 mm |
| M10 | 12-60 mm |

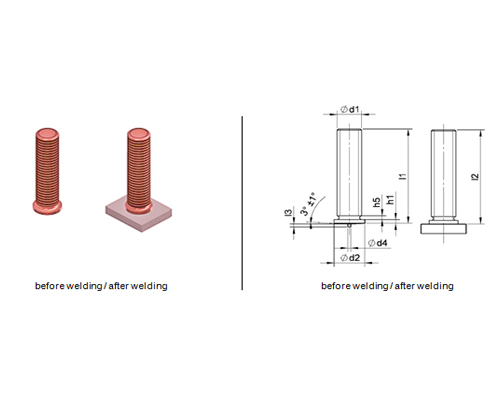

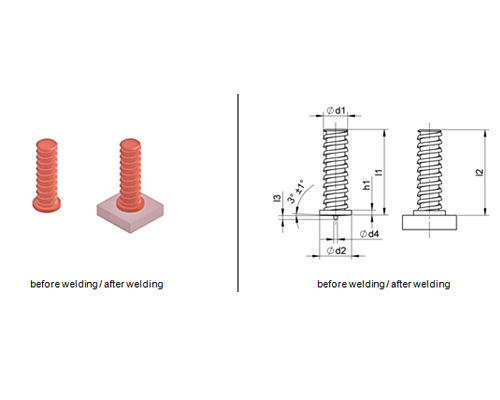

Dimensions
| Description | Length |
|---|---|
| 3 | 6-30 mm |
| 4 | 6-40 mm |
| 5 | 6-45 mm |
| 6 | 8-60 mm |
| 7.1 | 10-60 mm |
| 8 | 10-40 mm |

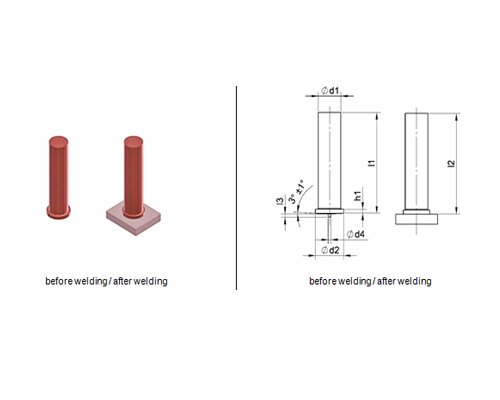

Dimensions
| Description | Length |
|---|---|
| 5 | 6-30 mm |
| 6 | 8-40 mm |
| 7.1 | 10-40 mm |
| 8 | 10-40 mm |

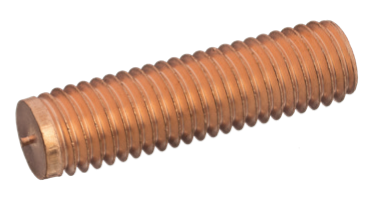

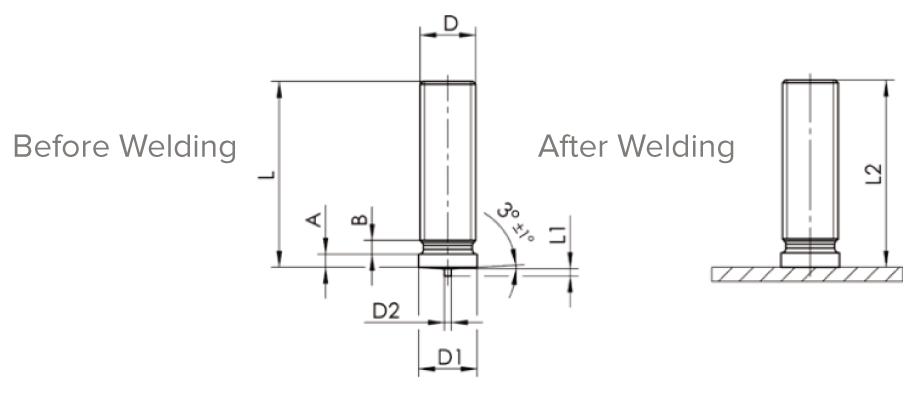

All specifications in mm
| D | L ( + 0.6 ) |
|---|---|
| M3 | 6 - 45 |
| M4 | 6 - 45 |
| M5 | 6 - 40 |
| M6 | 6 - 50 |
| M8 | 8 - 55 |
| M10 | 12 - 50 |

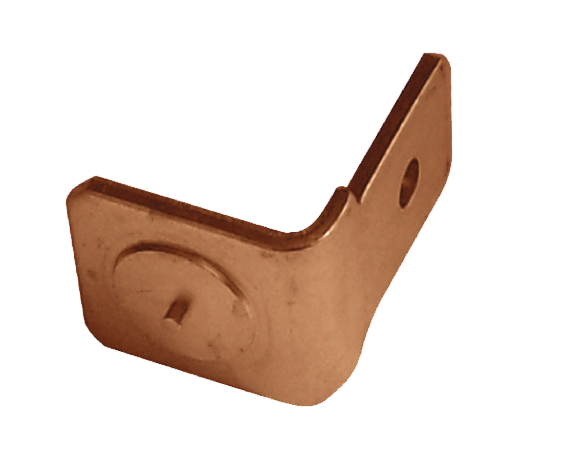

Dimensions
| Description | Length |
|---|---|
| 5 | 9 mm |
| 5 | 14.2 mm |
| 5 | 18 mm |
| 5 | 25 mm |

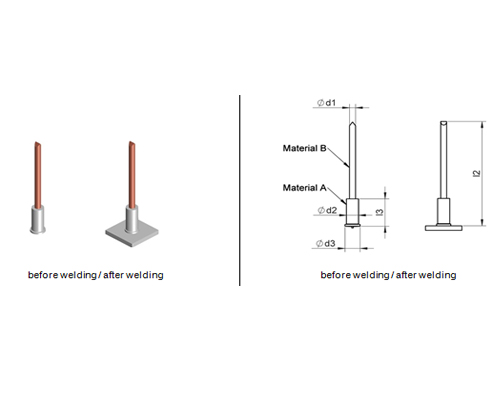

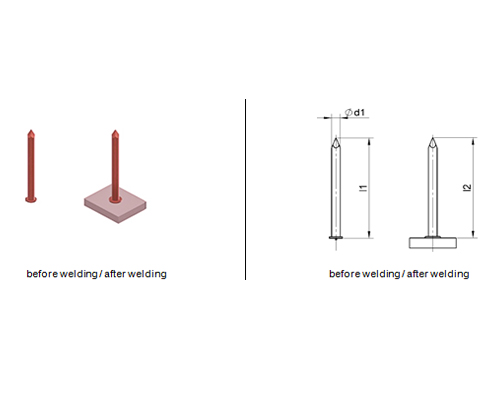

Dimensions
| Description | Length |
|---|---|
| 2 | 20-150 mm |
| 3 | 20-150 mm |
Dimensions
| Description | Length |
|---|---|
| 3 | 30-200 mm |

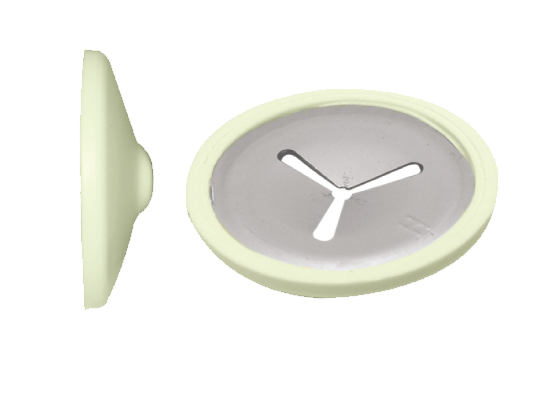

.png)

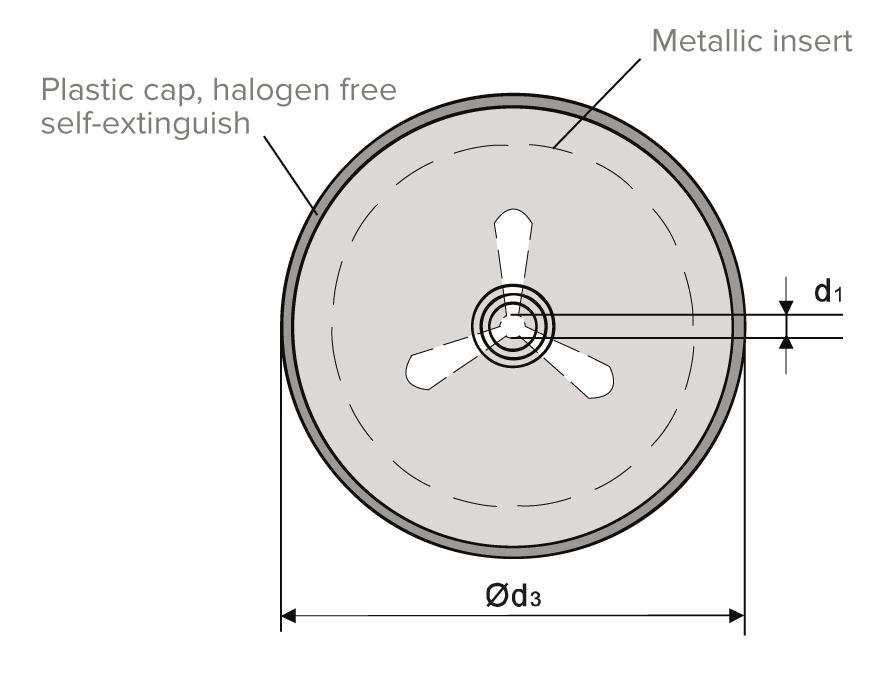

-diagram.png)
All specifications in mm
| d1 | d3 |
|---|---|
| Ø3 | 45 |
| Ø4 | 45 |

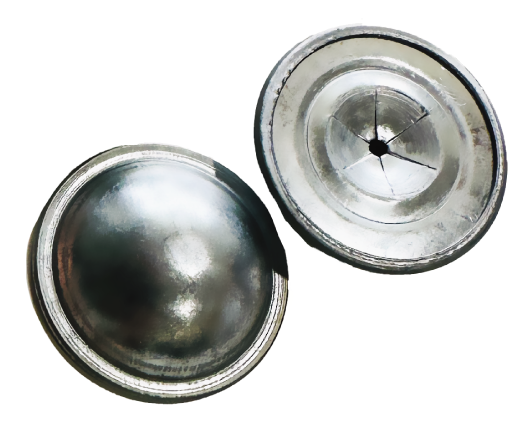

.png)
-diagram.png)
| d1 | d ( ±0.5 mm ) |
h ( ±1 mm ) |
Pt ( ±0.1 mm ) |
|---|---|---|---|
| 3 mm | 24 | 8 | 1.10 |
| 2.9 mm / 3.9 mm | 32 | 12 | 1.10 |
| 2.9 mm / 3.9 mm | 36 | 10 | 1.10 |

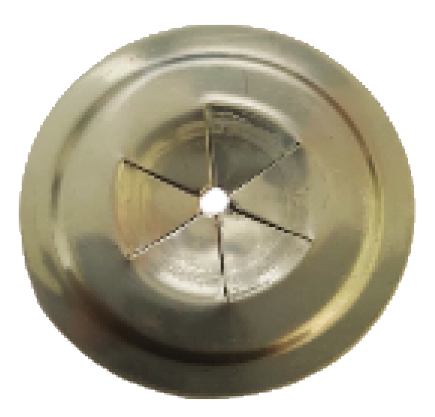

.png)
-diagram.png)
Materials:
| DiaØ | Thickness |
|---|---|
| 38mm | 0.4mm |
