Drawn arc Weld Studs

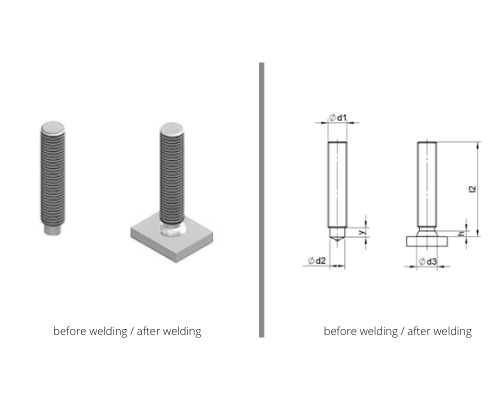

Threaded Drawn Arc Weld Studs – Type RD

Dimensions

Description	Length
M6	15-100 mm
M8	15-100 mm
M10	15-100 mm
M12	20-100 mm
M16	25-100 mm
M20	30-100 mm
M24	50-100 mm

1. Other y-dimensions available on request.
2. P = thread pitch acc. to DIN 13-1
3. for l2 < 20 mm
*d3 and h are approximate values.

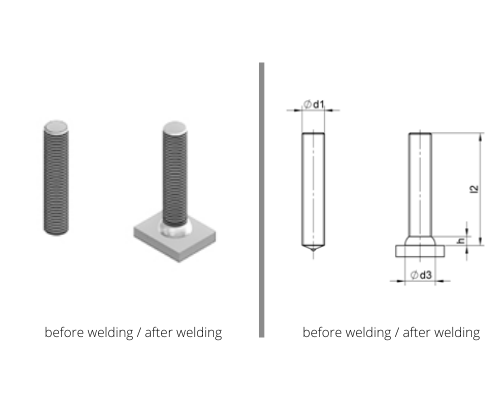

Threaded Drawn Arc Weld Studs – Type PD

Dimensions

Description	Length
M6	15-100 mm
M8	15-100 mm
M10	15-100 mm
M12	20-100 mm
M16	25-100 mm
M20	30-100 mm

*d3 and h are approximate values.

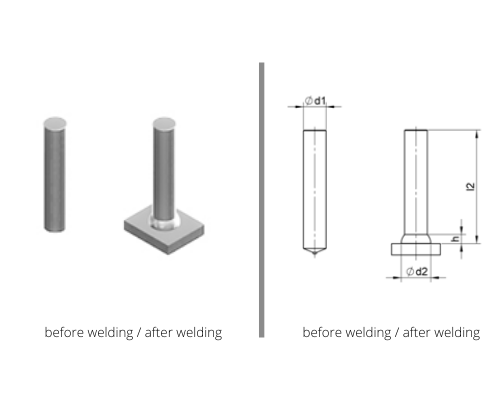

Unthreaded Drawn Arc Weld Studs – Type UD

Dimensions

Description	Length
6	15-100 mm
8	15-100 mm
10	15-100 mm
12	15-100 mm
14.6	20-100 mm
16	30-100 mm
20	40-100 mm
22	40-100 mm

1. for l2 < 20 mm
*d2 and h are approximate values

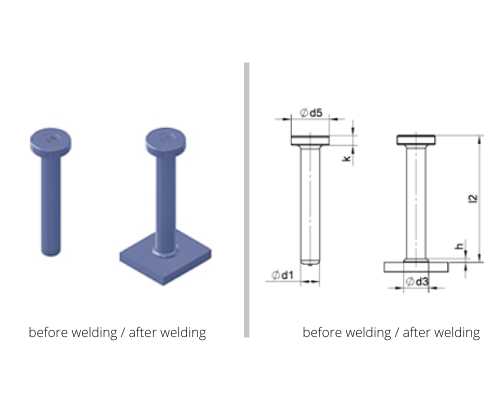

Shear Connectors

Dimensions

Description	Length
16	150 mm
16	175 mm
16	200 mm
16	225 mm
16	250 mm
16	275 mm
16	300 mm
19	50 mm
19	60 mm
19	75 mm
19	80 mm
19	90 mm
19	100 mm
19	125 mm
19	150 mm
19	175 mm
19	200 mm
19	225 mm
19	250 mm
19	275 mm
19	300 mm
22	75 mm
22	90 mm
22	100 mm
22	125 mm
22	150 mm
22	175 mm
22	200 mm
22	225 mm
22	250 mm
22	275 mm
22	300 mm
25	75 mm
25	100 mm
25	150 mm
25	175 mm
25	200 mm
25	225 mm
25	250 mm
25	275 mm
25	300 mm

*d3 and h are approximate values.
