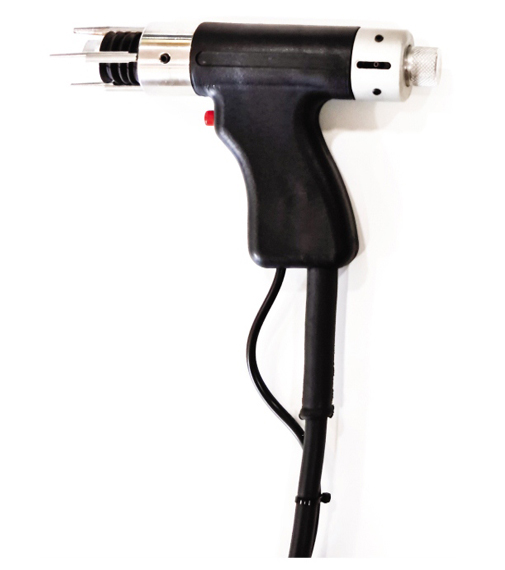

The compact stud welding gun AS-10 is designed for capacitor discharge stud welding machine (contact method). It guarantees optimum welding results and repeatability and is very easy to use. The AS-10 stands out through its robust construction and high reliability. Its ergonomic design and low weight ensures tireless working.
| Range: | M2 - M10 |
| Welding material: | Mild Steel and Stainless Steel, Aluminium & Brass |
| Stud length: | 6-200 mm |
| Welding method: | capacitor discharge |
| Welding cable: | 3m, 25mm2 |

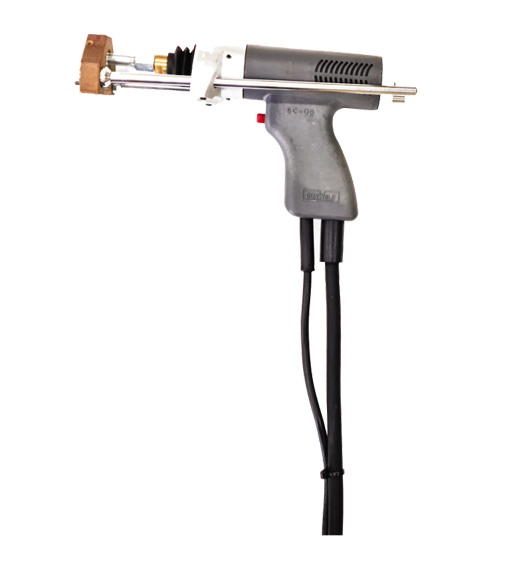

The compact stud welding gun SC-08 is designed for Short cycle stud welding. It guarantees optimum welding results and repeatability and is very easy to use. The SC-08 stands out through its robust construction and high reliablility. Its ergonomic design and low weight assure tireless working
| Range: | Ø3 - Ø12mm |
| Welding material: | Mild Steel and Stainless Steel |
| Stud length: | 6-40 mm |
| Welding method: | short cycle |
| Control cable plug: | 4 pin |
| Welding cable: | 5m, 35mm2 |

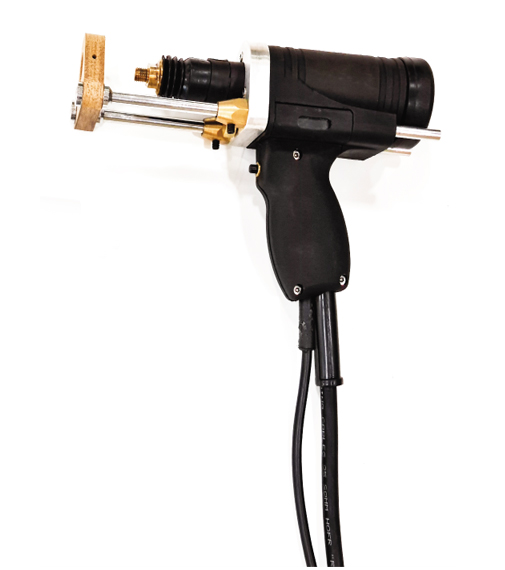

The stud welding gun ARC-1600 is designed for drawn arc stud welding up to a diameter of 15 mm & convinces with easy handling, high reliability and an ergonomic design. The robust construction ensures a smooth running even under stringent conditions. It enables quality monitoring by measuring and recording of stud travel (piston runtime, immersion depth) for each weld
| Range: | Ø05 - Ø16mm |
| Welding material: | Mild Steel and Stainless Steel |
| Stud length: | 15-300mm |
| Welding method: | drawn arc (ceramic ferrule and inert gas) |
| Lift: | 1-4.5 mm (adjustable) |
| Control cable plug: | 4-pin |
| Welding cable: | 5m, 35mm2 |
The stud welding gun ARC-1800 is designed for drawn arc stud welding up to a diameter of 19 mm & convinces with easy handling, high reliability and an ergonomic design. The robust construction ensures a smooth running even under stringent conditions. It enables quality monitoring by measuring and recording of stud travel (ft, piston runtime, immersion depth) for each weld.
| Range: | Ø6mm - Ø19mm |
| Welding material: | Mild Steel and Stainless Steel |
| Stud length: | 15-300 mm |
| Welding method: | drawn arc (ceramic ferrule and inert gas) |
| Lift: | 1-4.5 mm (adjustable) |
| Control cable plug: | 4 pin |
| Welding cable: | 5m, 70mm2 |
