Short Cycle, Drawn Arc Weld Studs

Dome caps, insulation Nails Threaded, Non Threaded manufacturer in Ahmedabad

Threaded Short-Cycle Drawn Arc Weld Studs – Type PS

Drawn Arc Stud Welding in Ahmedabad

Dimensions

Description	Length
M3	6-30 mm
M4	6-40 mm
M5	6-45 mm
M6	8-60 mm
M8	10-60 mm
M10	15-60 mm

Dimensions that are not listed in the measurement tables are delivered on request

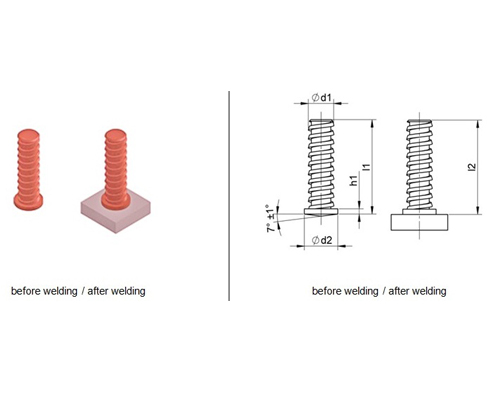

Coarse Threaded Short-Cycle Weld Studs (Fir Tree Studs)

Drawn Arc weld stud Manufacturers in Ahmedabad

Dimensions

Description	Length
5	9 mm
5	14.2 mm
5	18 mm
5	25 mm

Dimensions that are not listed in the measurement tables are delivered on request.

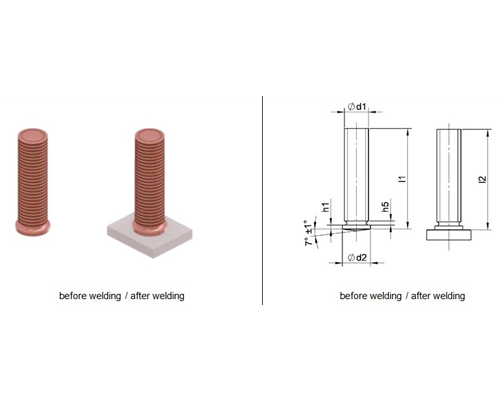

Internally Threaded Stud - TYPE IS ACC.

Stud Welding Machine Manufacturers in Ahmedabad

Dimensions

Description	Length
5	6-30 mm
6	8-40 mm
7.1	10-40 mm
8	15-40 mm

Dimensions that are not listed in the measurement tables are delivered on request

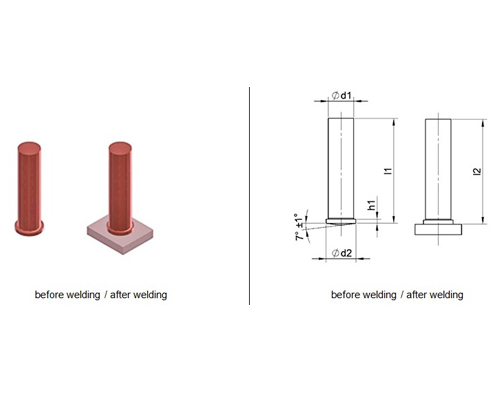

Non-threaded stud - TYPE US ACC.

CD Stud Welding Machine in Ahmedabad

Dimensions

Description	Length
3	6-30 mm
4	6-40 mm
5	6-45 mm
6	8-60 mm
7.1	10-60 mm
8	15-40 mm

Dimensions that are not listed in the measurement tables are delivered on request

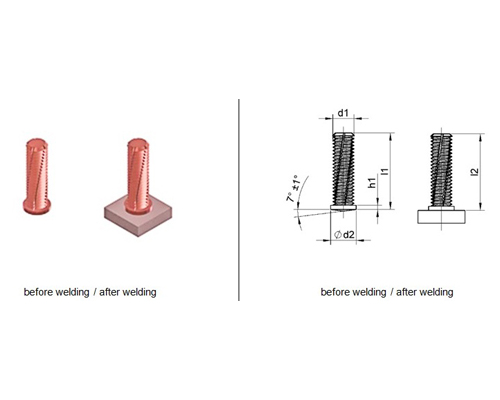

Color Groove Stud

CD Weld Studs Manufacturers in Ahmedabad

Dimensions

Description	Length
M4	on request
M5	on request
M6	on request
M8	on request

Dimensions that are not listed in the measurement tables are delivered on request
